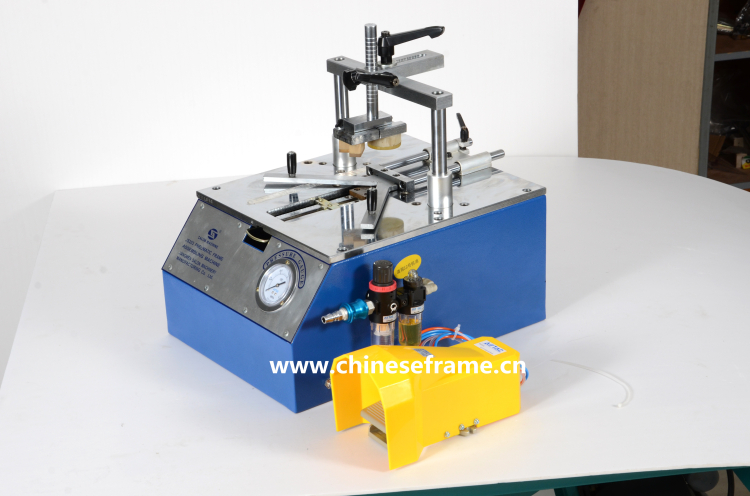

ITEM NO,TS-J21 AIR-ON UNDERPINNER.

The features of this one like below:

1, Small size, Suit for the small working space.

2, Working with all air  pneumatic , without  electric power .

3, Both Type AL & UNI are available in this machine. Just by the V-Nails you like.

4,Attractive & durable design make Btter working.

the working speed for v-nailing is very fast with auto-mactic oil-filled system for all slipping parts;with these advantages, this TAISHENG machine is widely used in all of working plase in fields of photo frames,mirror frames and handicrafts etc.

TS-J20 pneumatic joint machine puts the v-nail into the angle of wooden frame under the mechanical power or pneumatic power, in this way,to guarantee the angle stable and deeply close.(the width of v-nail is 10.3-10.8mm in degree 89°to 90°)

 Technical data.:

Machine Operations

 1,the choice of v-nail:the height of the v-nail should be between ½ to 2/3 of the thickness of mouldings;and could put in two nails at the same place if the moulding is too thick;

2,choose the right v-nail die-mould for the right v-nail and then lock it to the machine:

3,  adjusting the v-nail front and back position properply and then lock it.

Using foot  press the left side button, It can make the hands on the desk lock the frame, Let the frame won't move any more and perfect standard.

Then press the right side button, It can make the machine push the V-nails into the frame.

4, then operate the v-nail process by foot and then finish.

Guarantee:

1,one year guarantee; after-sell services and technical guide always available;

2,Instruction manual with operation guide video;

3,Technical support avaible anytime;

4,OEM services avaible;
