The Advantage of this machine :
1. Safely, It makes the saw locked inside. We only need move the frame mouldings outside, no chance to get close with the saw.
2. Quick: It will cutting double face, only need to move the frame. Do not need to change the different to cut as the normal cutting machine .
3.Use-friendly: Only need to press the button, it will works in a good condition.
4. Cost-saving: It will only cut a small triangle in the middle. This means it can reduce cutting waste. Especially the expensive mouldings.
5. Wide selection:The max cutting size is (W) 180mm* (H) 85mm. It can cut the larger size and make you can make a bigger frame.
Here is the working video , you can find more details in it. And it will show you more. If you are interesting on this , please contact us .
If video can not open : please open this youtube link : https://youtu.be/kbGi0lW2aiA
Taisheng frame Double Mitre Saw has been designed to precisely cut mitres for picture framing and woodworking applications such as windows, doors, and furniture components.
This is a heavy duty saw built to last many years in a high production environment. It has a unique pneumatic control system which totally supports the weight of the cutting assembly allowing a very smooth down-stroke,

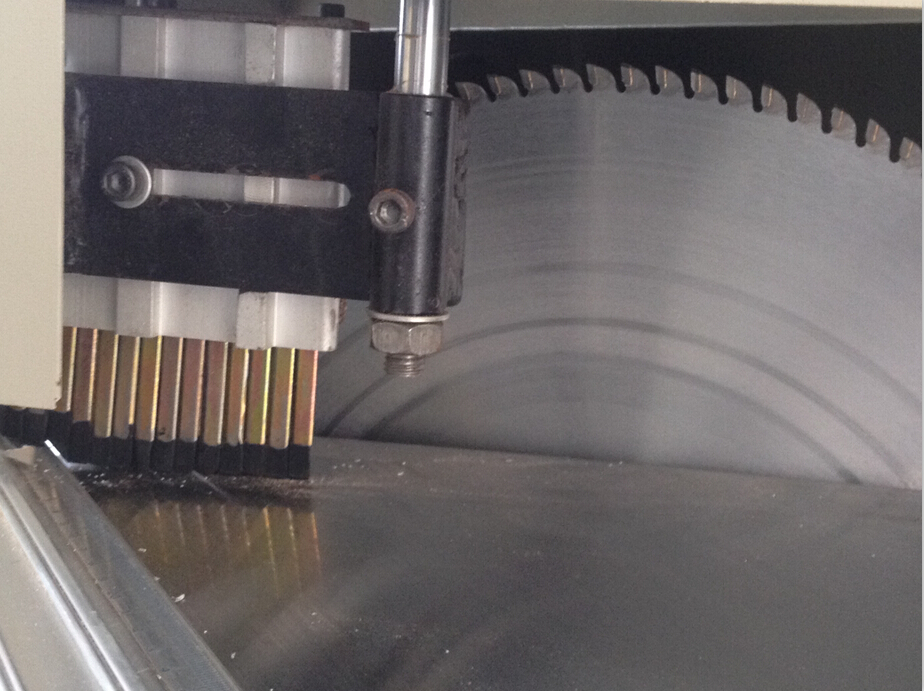

precise cuts, and a quick return. Two saw blades are fixed at 45 degree angles and vertically move up / down. With each stroke, the two mitres are cut from the moulding with the least amount of scrap. During the cutting process,
the moulding cannot move as it is held firmly to the work table by four pneumatic clamps ensuring high quality cuts every time!
Model No. | Product size(mm | Voltage(kw) | Max. cutting width(mm) | Max. cutting height(mm) | Cutting degree(°) | Available size of the saw | Product weight |
5128 | 3770*850*1250 | 3.0 | 180 | 85 | 45 | 14 | 600kgs |
More details please get in touch with our girls, they will show you more picture or video. Thanks!

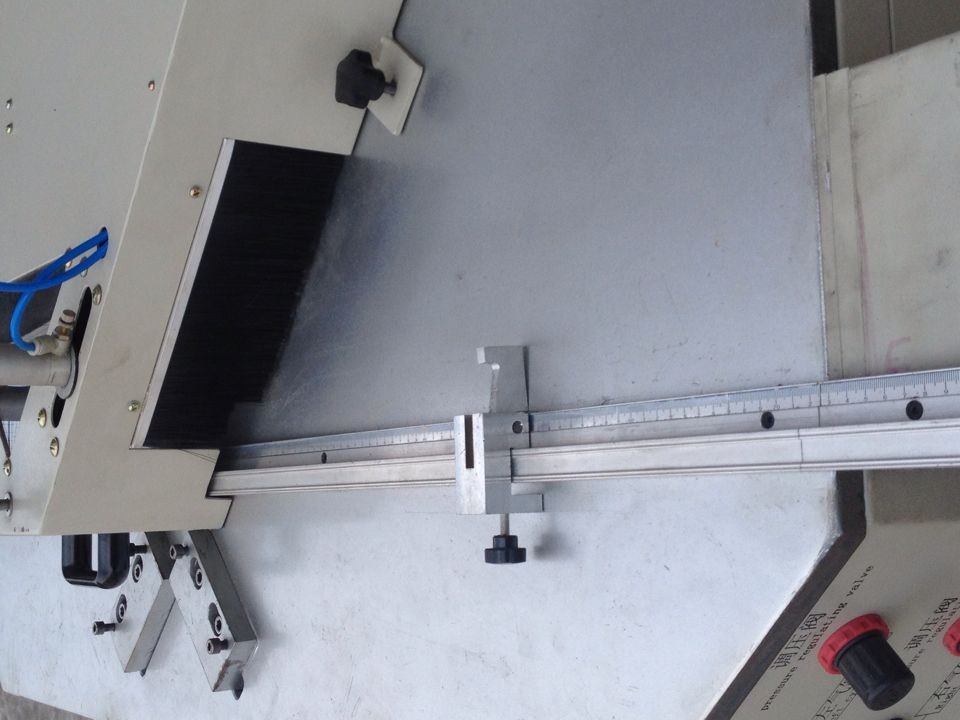

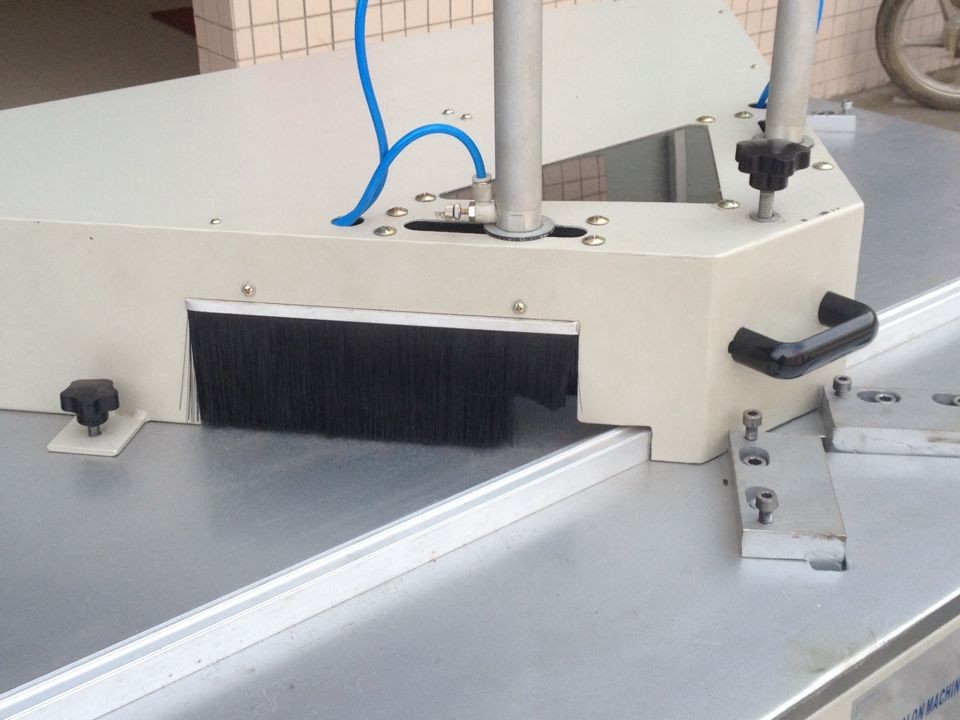

CUTTING SHOW:
Packing like this !!Strong packing make it very safely to arrived your city!
Guarantee:
1,one year guarantee; after-sell services and technical guide always available;
2,Instruction manual with operation guide video;
3,Technical support avaible anytime;
4,OEM services avaible;
Similar products:
We are the one who produce good machine!
Wide selection, competitive price, fast delivery and friendly service is the biggest advantage of us. Good business star from this. Wish us have a long-term cooperation in the further.
