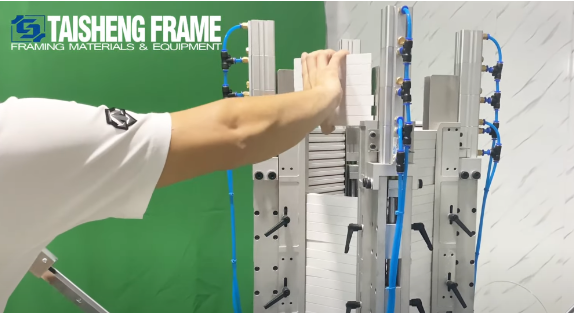

frame loading port design is top big ,bottom small .heigth is 65cm, suitable. One hand easy loading frames.
Worker even no need raise hand .It will makes you easy put frame and fast in it from top.
Attention : This will influences many things when it in production .
Worker will be very Comfortable working condition .
Comfortable working will helps company win more ! And win more !
Online Order link as below:
Click me to order and see price.
Product Description
|
Name:
|

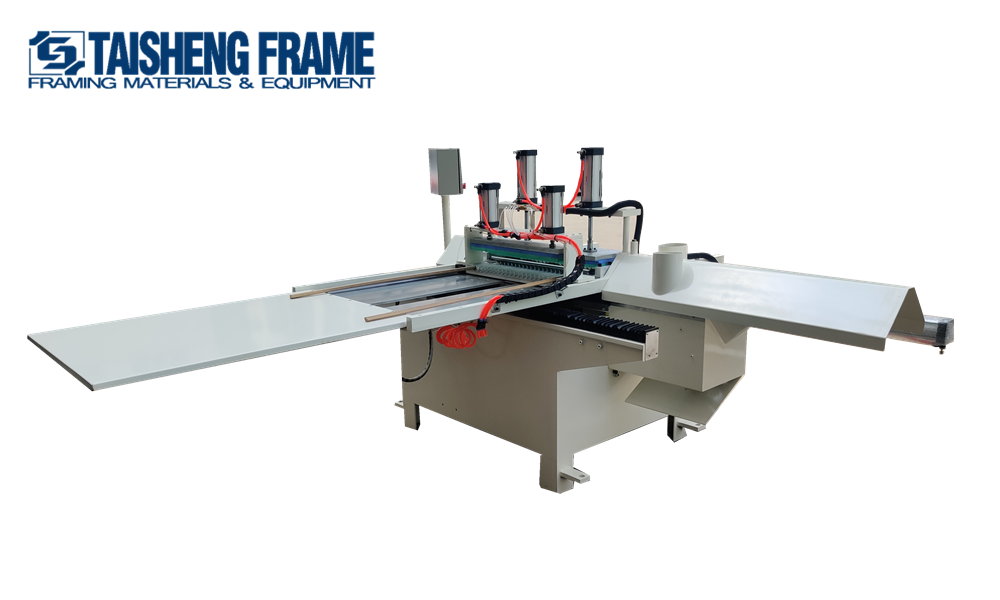

TS-J50ZS Automatic picture frame joint robot for large photo production line .
Canvas Stretcher Bar Underpinner
|
|
Power
|
220V, 50/60hz, 1 phase. If you need change power ,please call us !
|
|
Production capacity
|
Big size 1600pcs-1800/H, Small size 2400pcs/H. Now still Is improving .
|
|
Advantage 1- Machine frame Shape:
|
Made by steel, hard enough , and heavy weight makes it less shake . More durable !
|

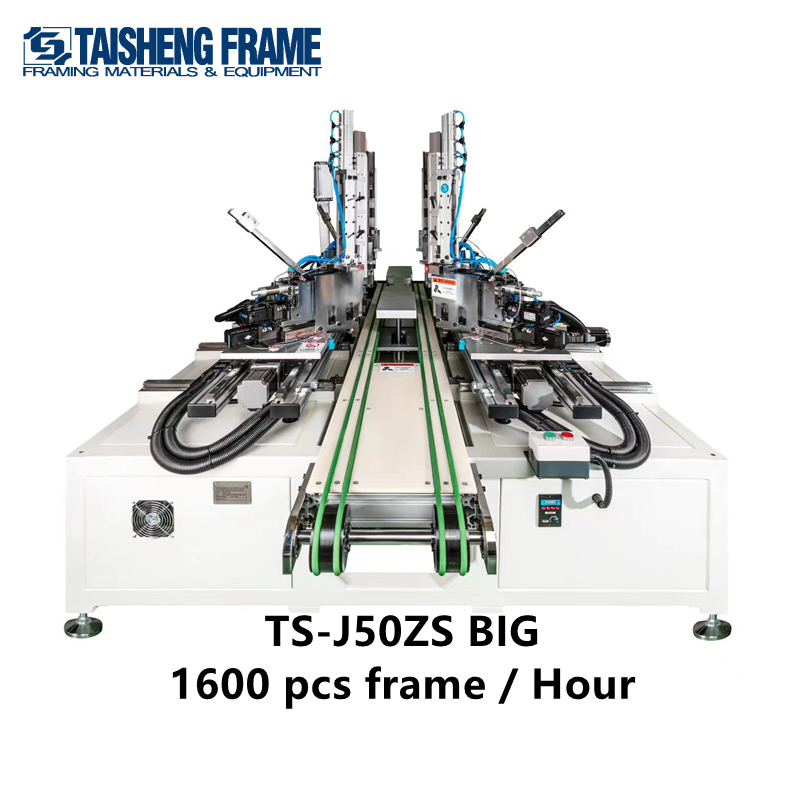

TS-J50ZS Big type
Min size: 20 x 20 cm
Max size: 80 x 120 cm
Weight : 1000KG
Machine size: 220x172x170cm
Packing size: L255CM * W 205CM * H 213CM GW:1770KG
Moulding size: Width-1~4cm Heigth≤3cm
TS-J50ZS Small type
Min size: 10x15cm
Weight : 900KG
Max size: 55x68cm
Machine size: 210x170x168cm
Moulding size: Width-1~4cm Heigth≤3cm
Advantage 2 -Loading frame:
Advantage 3-Frame park port station :
Small frame no problem .Cause it not heavy . Small size make the frame strong .
Problem will happen on big size frames .
For big frames , we designed a port to park the frames carfully . See the Big size type.
In this way ,frame won't damage . Make it less weight .And all in same position and direction move to next station .
This will be very important for a fast production line.
4 small + strong green conveyor belt ,will make less friction to deliver frames out faster ! This is more durable and worker more safe too.
Problem will happen on big size frames .
For big frames , we designed a port to park the frames carfully . See the Big size type.
In this way ,frame won't damage . Make it less weight .And all in same position and direction move to next station .
This will be very important for a fast production line.
4 small + strong green conveyor belt ,will make less friction to deliver frames out faster ! This is more durable and worker more safe too.
Competitiors : large size conveyor belt, danger when worker put mouldings in machine backside .
Frame easy damage or broken belt when it drop off . Position will many different ,worker will collect them not fast .
Frame easy damage or broken belt when it drop off . Position will many different ,worker will collect them not fast .
Advantage 4:

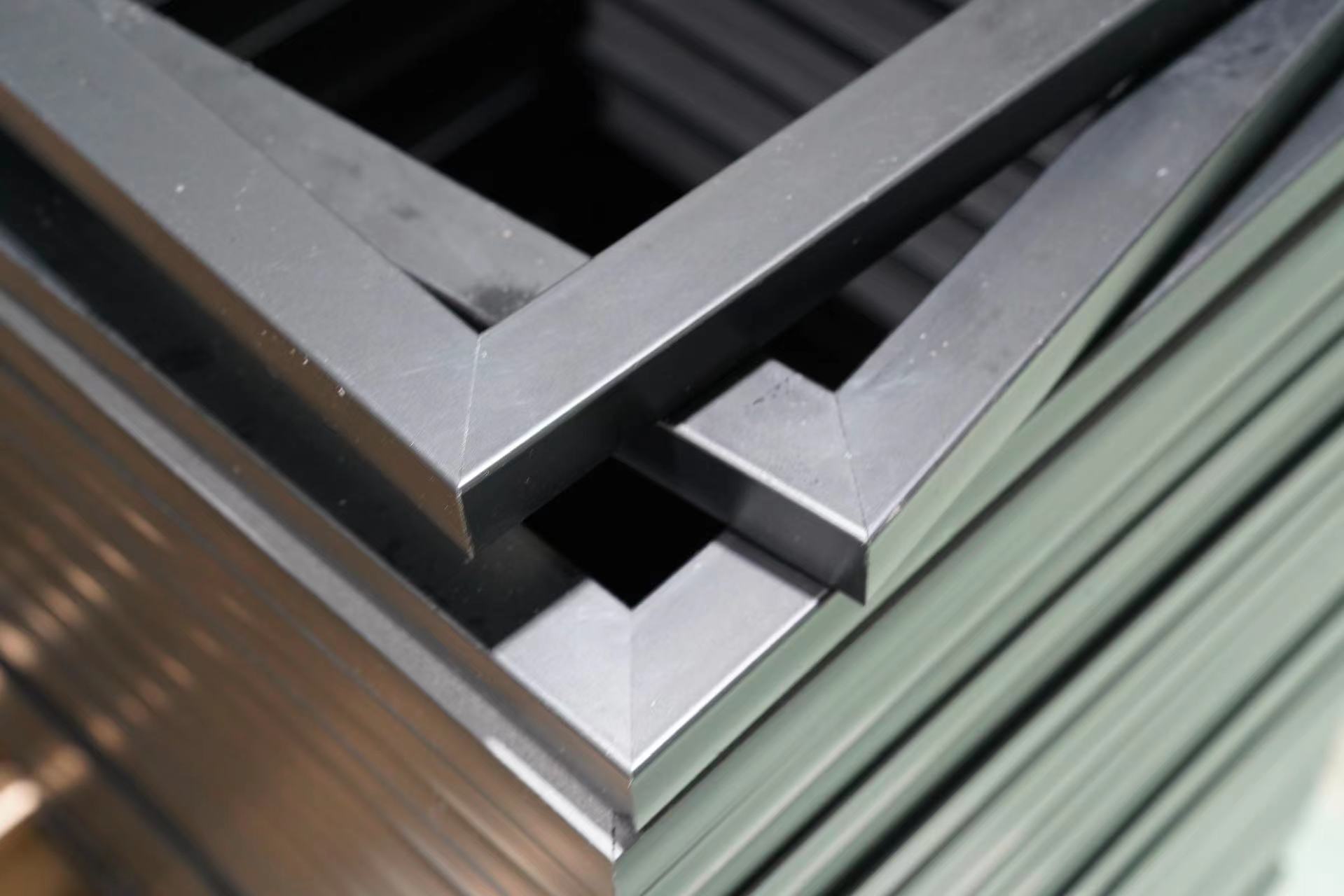

4-corner joint in one time together, makes all corner close well !
All corner in same nail position , looking more attractive !
Advantage 5:

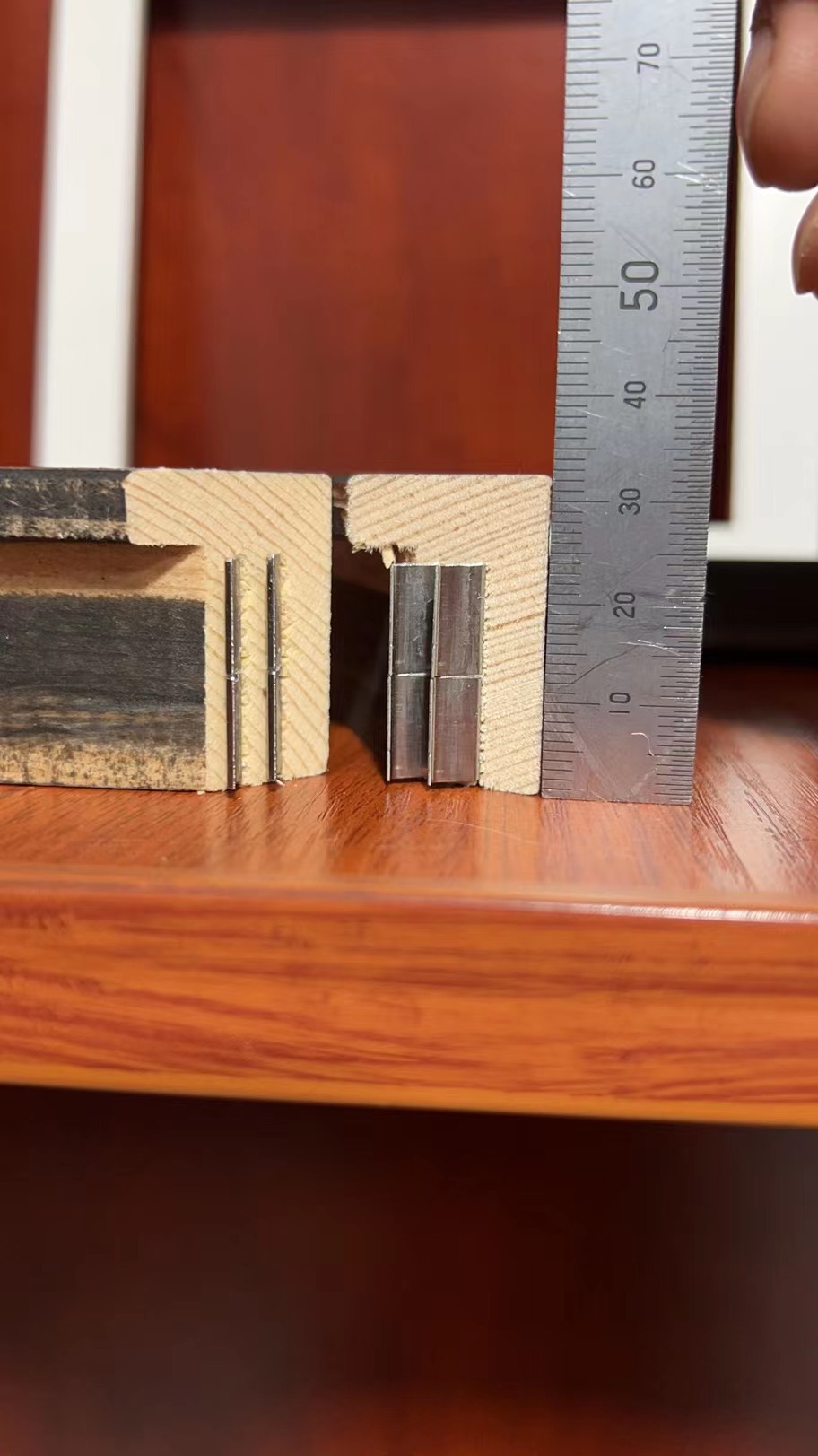

Strong cylinder shoot vnails into mouldings very easy !
Shoot more nails depends on different thickness.
Making corner strong ,No need glue for working .
Automatic cutting machine partner :TS-J39 Automatic cutting -28pcs frame cutting in one time!
Click picture Learn more : http://taishengframe.com/en-US/product829.html
WORKING VIDEO:
Automatic Frame Joining PRODUCTION LABOR SAVINGS | FRAME BUILDING INTEGRATION Designed and manufactured for high-volume auto joining of canvas stretcher bars. Average cycle time for four-corner joining is 2 to 6 seconds per frame. Production range up to 1600-2400 joined frames per hour.
TS-J50ZS TAISHENG Frame Robot System suited for high volume automatic frame joining of moulding and canvas stretcher bars. The system consist of a Vertical Feeder that automatically positions the moulding into the four individually controlled joining stations each inserting V-Nails simultaneoulsy in one or multiple positions per corner.
автоматическая фоторамка СКРЕПЛЯЮЩИЙ СТАНОК Скрепляющий станок “TS-J50ZS” больше подходит для багетных мастерских, выполняющих индивидуальные заказы. Удобный, надеждный и производительный станок, прост в управлении. Верхний прижим всегда находится в точке, где вставляется скобка.
TS-J50ZS automatically underpins four stretcher bars (45° cut) with v-nails.
Frames can be underpinned adjustably with one, two or three v-nails. You can expect production yields of about 30-40 units per minute, depending on if your operator can keep up with the magazine loading and frame output handling.
Format changes are continuously variable and take approximately 2 minutes with no extra tools needed. Through its integration into automated canvas stretching manufacturing,
Online order and more details please check link as below : https://www.alibaba.com/product-detail/TS-J50ZS-Automatic-picture-frame-joint_1600632546687.html?spm=a2747.manage.0.0.68ee71d2R0jPJD TS-J50ZS -Small Automatic Frame Joining robot PRODUCTION LABOR SAVINGS | FRAME BUILDING INTEGRATION Designed and manufactured for high-volume auto joining of canvas stretcher bars. Average cycle time for four-corner joining is 2 to 6 seconds per frame. Production range up to 1800-2400 joined frames per hour.
TS-J50ZS TAISHENG Frame Robot System suited for high volume automatic frame joining of moulding and canvas stretcher bars. The system consist of a Vertical Feeder that automatically positions the moulding into the four individually controlled joining stations each inserting V-Nails simultaneoulsy in one or multiple positions per corner.
Frame Assembly Machine Stretcher Bar underpinner machine vnails joint machine #StretcherBar #canvaspainting
